Across industrial plants worldwide, critical machines built decades ago still driving daily production. Yet with original drawings gone, seasoned technicians nearing retirement, and replacement parts no longer stocked, engineering executives are in a tough spot. How can an organization keep its lines running, meet evolving standards, and control costs when legacy assets threaten to cause downtime?

Why Reverse Engineering Alters the Equation

Reverse engineering services give teams a practical bridge between yesterday’s hardware and tomorrow’s performance goals. By capturing exact geometries through high-resolution 3D scanning and converting those scans into manufacturable CAD files, a team can recreate or improve obsolete parts without starting from scratch. When combined with legacy systems modernization strategies, reverse engineering accelerates digital transformation initiatives while respecting existing capital investments.

Our Proven Track Record

Katalyst Engineering supports more than 75 global facilities across automotive, aerospace, energy, and advanced manufacturing engineering sectors. In the past five years, our reverse engineering projects have:

• Recovered over 6,800 unique components that were considered obsolete, preventing an estimated 18,400 hours of unplanned downtime.
• Delivered average cost savings of 22 % through value engineering optimizations.
• Achieved 100 % first-article acceptance during SOP (Start of Production) for replacement parts.

Clients partner with us because we offer end-to-end solutions with a turnkey delivery model that fits into busy engineering schedules.

A Collaborative Path to Legacy Equipment Upgrades

Modernizing legacy equipment is rarely a one-size-fits-all exercise. We therefore build a co-working team that blends your institutional knowledge with our cross-industry engineering expertise. Clear milestones, shared digital workspaces, and structured communication reviews eliminate information gaps that have derailed past projects.

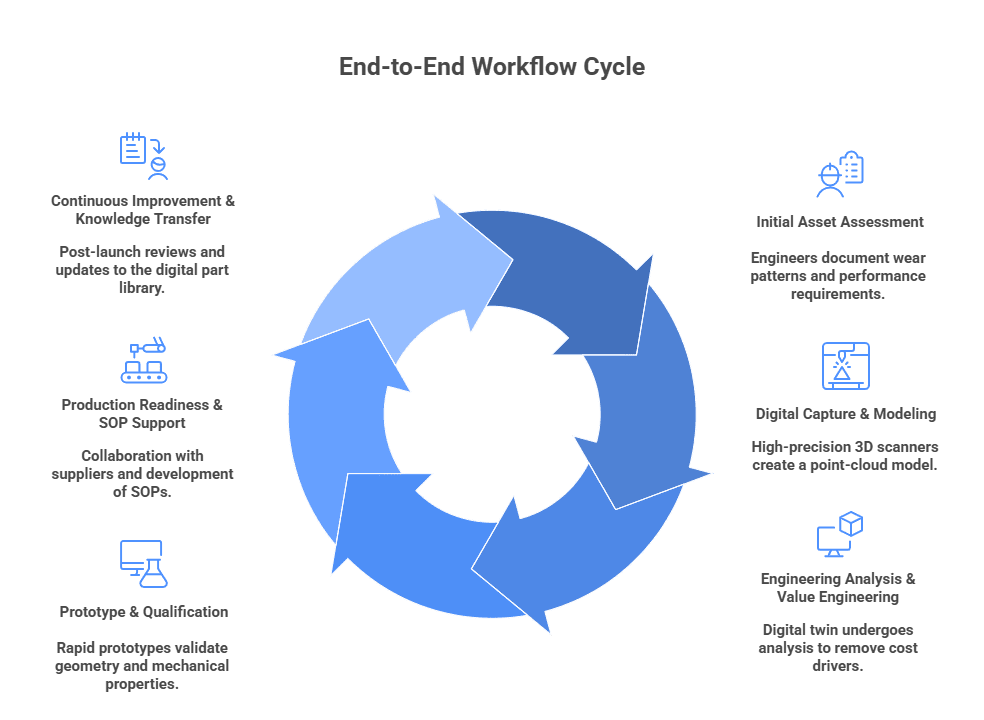

An End-to-End Workflow

1. Initial Asset Assessment
   Our engineers visit the facility or receive shipped components. We document wear patterns, material properties, and performance requirements. A knowledge-capture interview with outgoing technicians safeguards undocumented know-how.
2. Digital Capture & Modeling
   High-precision 3D scanners create a point-cloud model accurate to ±25 µm. Data are converted into a parametric CAD file, ready for simulation and DFM (Design for Manufacturing) analysis.
3. Engineering Analysis & Value Engineering
   The digital twin undergoes finite element analysis, tolerance stack-ups, and material substitution studies. Where possible, we remove cost drivers without affecting fit, form, or function, embedding value engineering directly into the redesign.
4. Prototype & Qualification
   Rapid prototypes—CNC or additive—validate geometry. Test coupons confirm mechanical properties meet or exceed the original. All findings feed a living documentation set that aligns with ISO and sector-specific standards.
5. Production Readiness & SOP Support
   Once qualified, we collaborate with selected suppliers or in-house shops. Our turnkey delivery package includes dimensional inspection plans, SOP checklists, and any ECU development documentation when electronic controls are involved.
6. Continuous Improvement & Knowledge Transfer
   Post-launch reviews capture lessons learned. We update the digital part library, ensuring future teams can access data instantly, even after senior staff retire.

Value Engineering and Cost Optimization

Balancing budget and performance is a chief concern for every operations executive. Since our reverse engineering process for legacy upgrades integrates value engineering from the start, clients routinely see:

• 10–30% material cost reduction through alloy optimization or consolidated geometries.
• Cycle-time cuts of up to 15 % by reorienting features for more efficient machining.
• Lower total cost of ownership via predictive maintenance data embedded in the digital twin.

Pro Tip:

Early value engineering workshops, held before final CAD release, yield the highest savings and prevent expensive tooling changes downstream.

Compliance Without Compromise

Regulatory landscapes evolve faster than machinery ages. Whether your facility follows ASME Y14.5, ISO 13485, or automotive IATF 16949, our team maps every design decision back to the applicable clause. Our documentation packets include material certifications, inspection reports, and traceability logs, simplifying audits and ensuring that modernization never risks non-compliance.

Case in Point: Automotive ECU Legacy Refresh

A Tier-1 supplier was facing a 16-week backlog for an outdated engine control unit (ECU) housing. Using our reverse engineering services, our collaborative team was able to:

• Digitally captured the die-cast enclosure in two days.
• Incorporated Design for Manufacturing (DFM) changes that eliminated a secondary milling step.
• Qualified the new design to Start of Production (SOP) in seven weeks, slashing lead time by 56 %.
• Met stringent EMI shielding requirements, maintaining vehicle certification.

The result was a resilient supply chain and a projected annual savings of USD 480 k.

Benefits at a Glance

• Institutional knowledge preservation safeguards against the loss of expertise when senior staff retire.
• End-to-end solutions reduce vendor hand-offs and shorten lead times.
• Turnkey delivery packages ensure fast SOP alignment.
• Built-in value engineering balances cost and quality.
• Documentation aligns with evolving standards and requirements.

FAQ

Can legacy parts be recreated without original drawings?

Yes. High-resolution 3D scanning combined with engineering validation reconstructs full CAD and technical data packages even when no legacy documentation exists.

How long does a typical reverse engineering project take?

Simple components may close in 3–4 weeks, while complex assemblies with electronic or fluid systems average 8–10 weeks, including prototype validation and compliance reviews.

What if my organization lacks internal manufacturing capacity?

Our turnkey delivery model allows us to qualify external suppliers or coordinate with your preferred vendors, ensuring seamless transition from design to production.

How is intellectual property protected during the process?

All data reside within secured PLM vaults with role-based access. Non-disclosure agreements cover third-party contributors, and clients retain full ownership of new intellectual property.

Ready for a Low-Risk First Step?

We invite you to schedule a complimentary Legacy Equipment Upgrade Assessment. In a 60-minute virtual session, our senior engineers will review one high-priority component, outline a tailored reverse engineering roadmap, and estimate potential value engineering savings. Let us collaborate to transform yesterday’s equipment into tomorrow’s competitive edge.
